H05V-U, H07V-U, H07V-R
1,5 mm2 and 2,5 mm2
Brown
Black
Green
Yellow
Gray
Blue
Purple
White
Orange
4 mm2 and 300 mm2
Brown
Black
Green
Yellow
Gray
Blue
400 mm2 , 500 mm2 and 630 mm2
Green
Yellow
OVERVIEW
For use in fixed installations, in trunking or conduit. May be surface mounted. Stranded, plain, annealed, compacted, circular copper, conductor. PVC outer sheath. Harmonised code HO7V-R. 450/750 volts grade to TS EN 50525-2-3.
STANDARDS
TS EN 50525-2-31

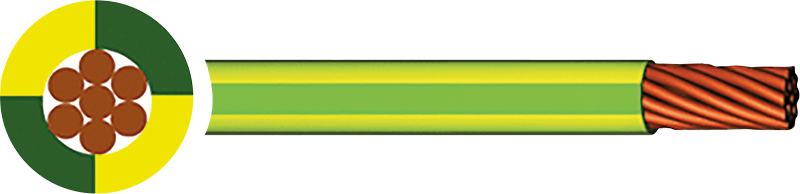

CONSTRUCTION
Conductor
Stranded Plain Annealed Compacted Circular Copper Conductor
Sheath
Poly Vinyl Chloride (PVC)
Sheath Colour
Various
CHARACTERISTICS
Maximum operating temperature: 70 °C
Maximum short circuit temperature: 160 °C ( max. 5 sec. )
Voltage Rating : 450/750 V
Minimum Bending Radius see datasheet
